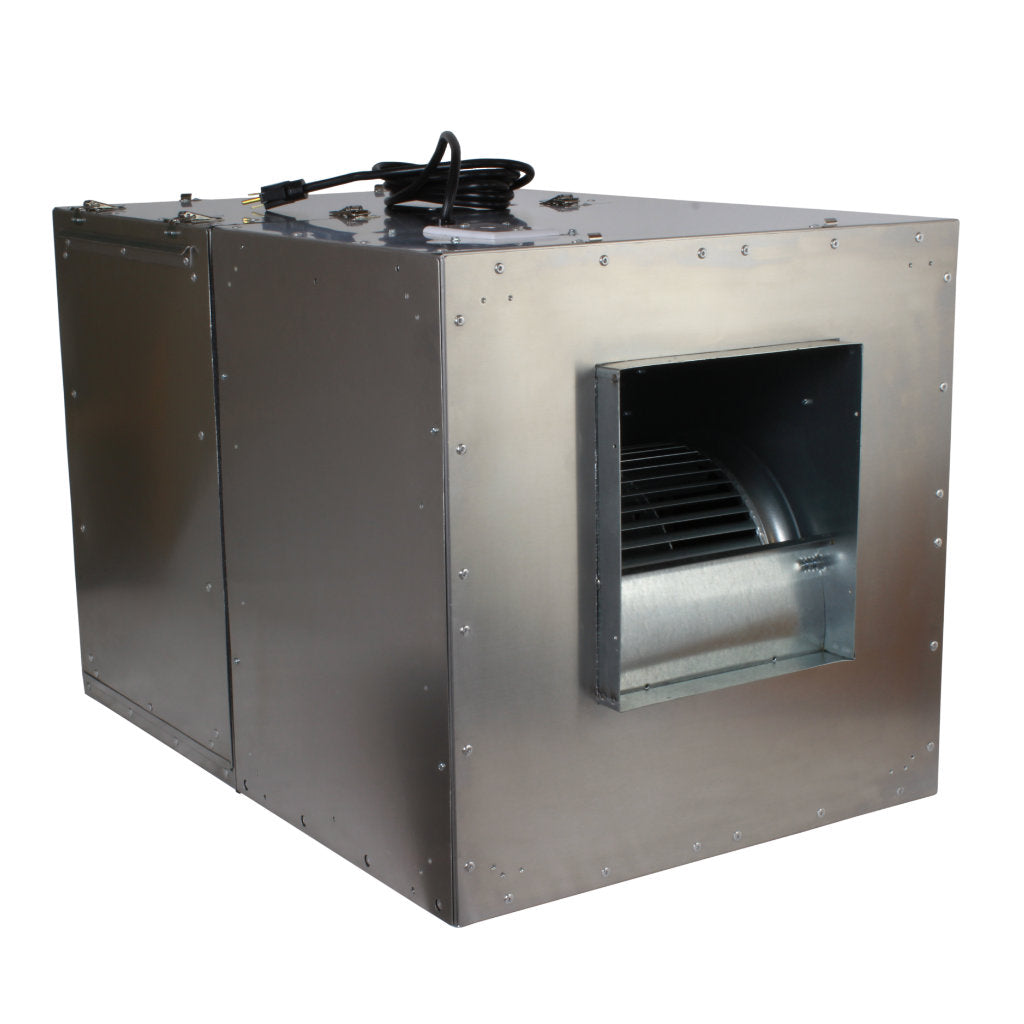

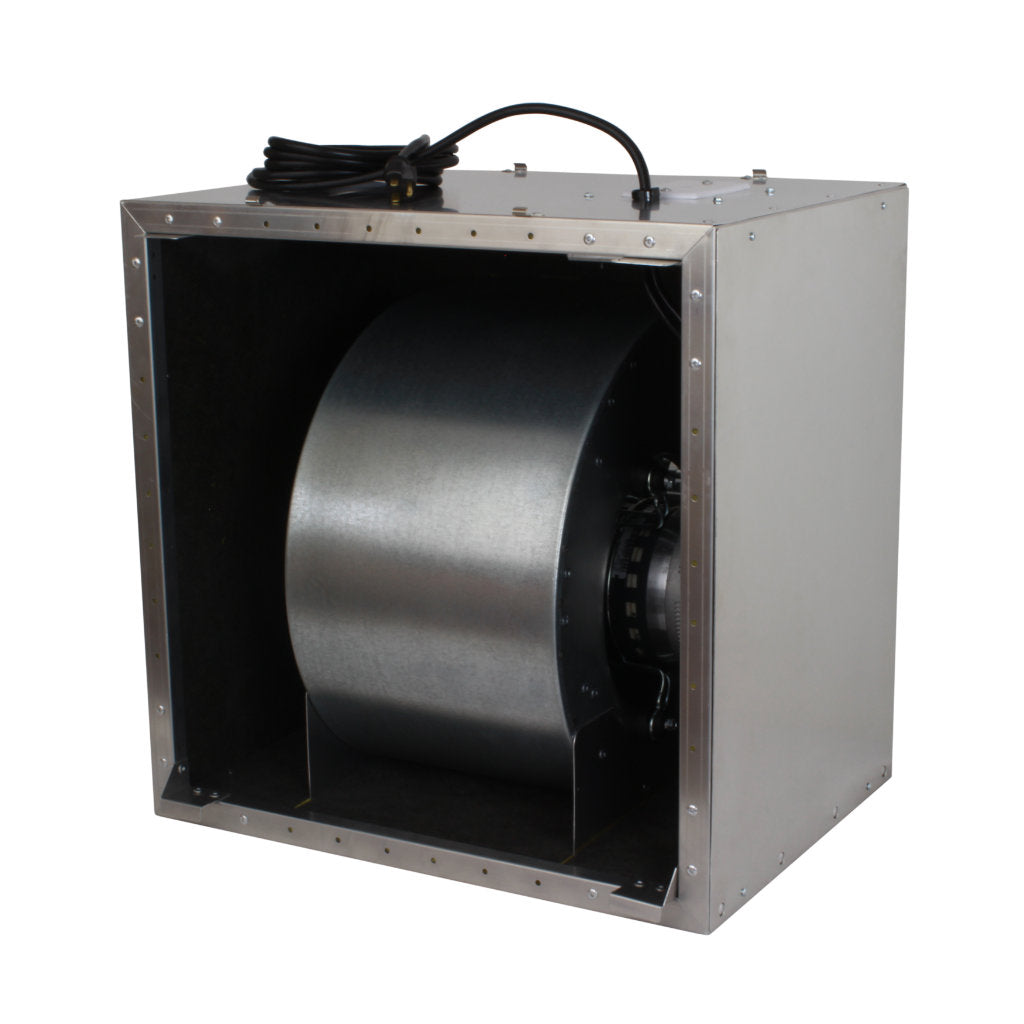

The AirScape Cabinet Fan is an air handler for general purpose residential ventilation. Its modular design allows it to be used by itself or in combination with multiple filter options, and to connect easily to various ducting arrangements. A simple wall mounted switch allows the fan to be run at any one of 10 speeds, and to be set to run on a timer for up to 12 hours. An optional wireless remote is also available.

An electronically-commutated motor provides outstanding airflow as well as outstanding efficiency. The sturdy aluminum enclosure is R-4 rated insulation. A 10 ft. power cord is installed in every unit. 115 or 230 VAC, 50/60 Hz, 1 phase (wired for 115V as standard, with 230V a simple field conversion).

Ordering

The AirScape CF is available in two airflow ratings and three filter options as follows:

  • AS-CF-1600 provides 1600 CFM with no filtration

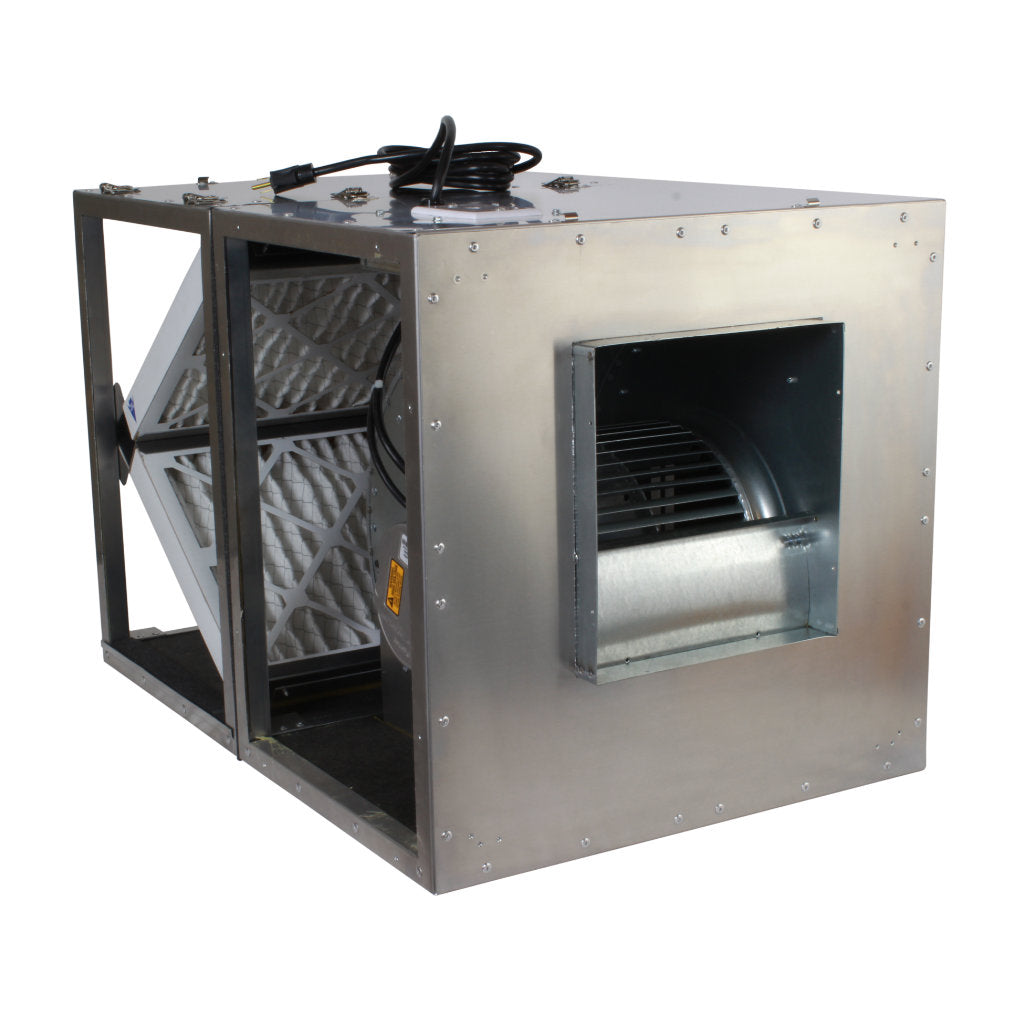

  • AS-CF-1600-FB provides 1600 CFM with MERV 13 module and filters

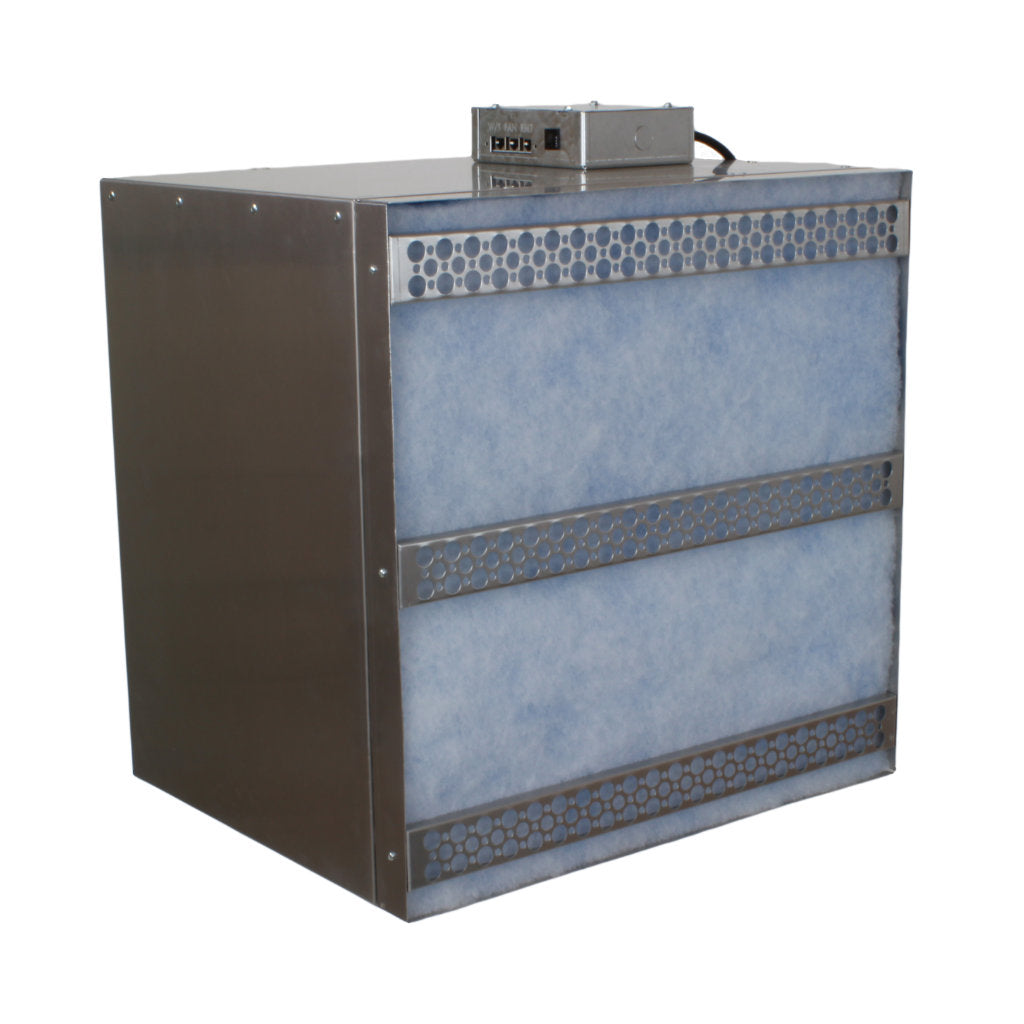

  • AS-CF-1600-FF provides 1600 CFM with MERV 6 flat filter module

  • AS-CF-1900 provides 1900 CFM with no filtration

  • AS-CF-1900-FB provides 1900 CFM with MERV 13 module and filters

  • AS-CF-1900-FF provides 1900 CFM with MERV 6 flat filter module

Our HVAC experts would be happy to explain these options further and help you select the best unit for your needs. Ships in 2-3 weeks.

Accessories

There are also two accessories available for this unit, a Wireless Remote Kit, and a Cased Hot Water Coil



Regular price $819.00 Sale

Full Specifications
Cabinet Fan with no filter option
Cabinet Fan with no filter option
Cabinet Fan with MERV 6 filter option
Cabinet Fan with MERV 6 filter option
Cabinet Fan
Cabinet Fan
Cabinet Fan
Cabinet Fan
Cabinet Fan
Cabinet Fan
Cabinet Fan
Cabinet Fan
Cabinet Fan
Cabinet Fan

AirScape Cabinet Fan Spec Sheet

What's in the box

This unit includes:

Cabinet Fan

Specifications for AS-CF-1600

  • Dimensions - Air-Handling Module: 16" x 22" x 22"
  • Airflow: 295-1600 cfm (min-max). 10 speeds.
  • Energy Use: 15-252 watts (min-max)
  • Motor: 1/3 hp, 120/230 volt, 50/60 Hz, 1 phase, ECM
  • Filter Rating: Optional MERV 13 or MERV 6 filtration modules

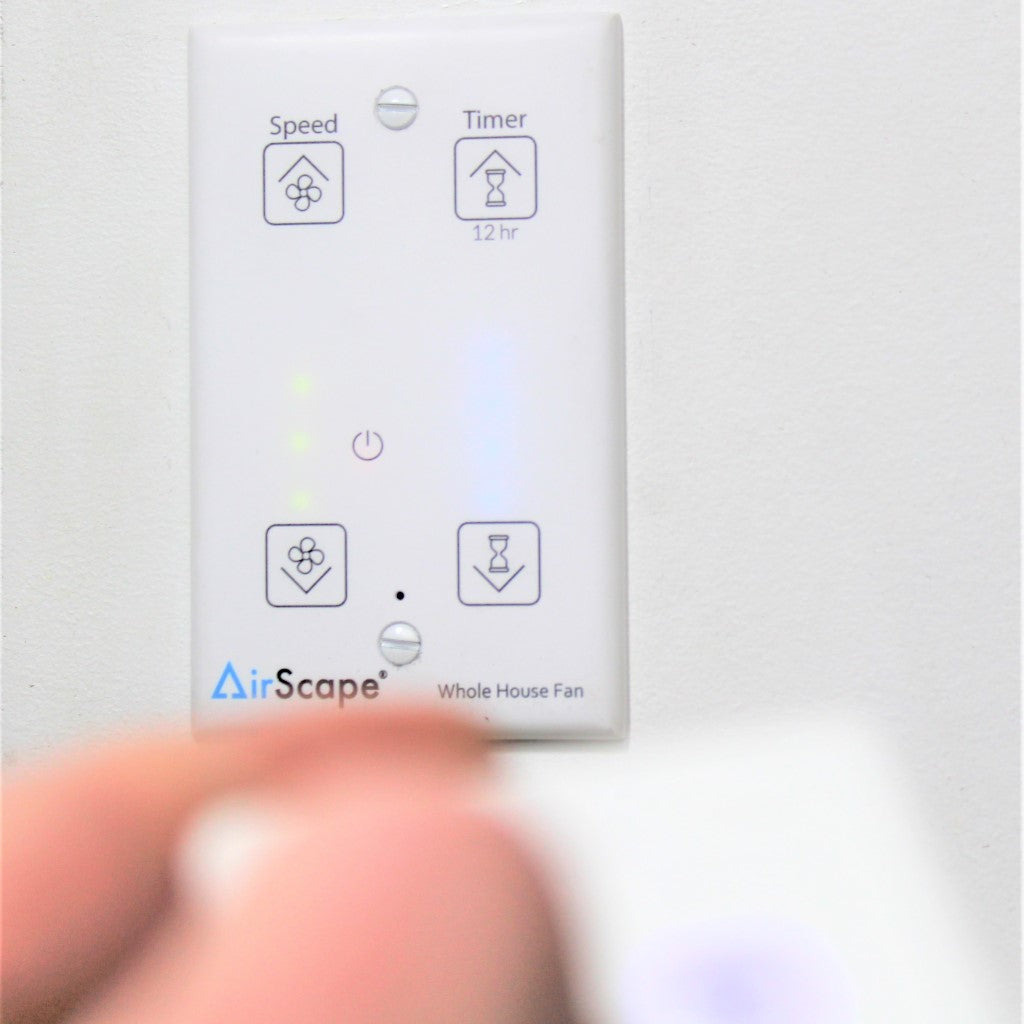

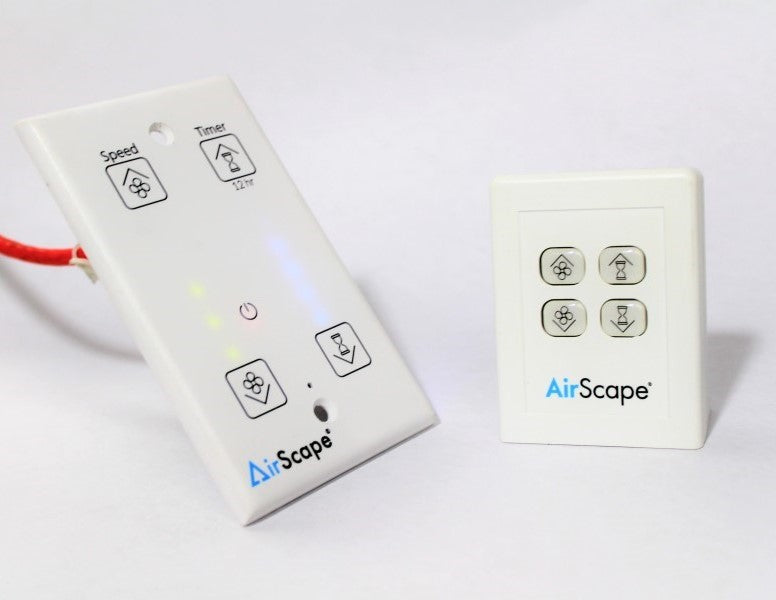

  • Controls: Low-voltage digital wall mounted controller. 10 speeds. Optional wireless remote control available.
  • Grilles/Duct: Ducting and inlet or outlet grilles NOT included

Specifications for AS-CF-1900

  • Dimensions - Air-Handling Module: 16" x 22" x 22"
  • Airflow: 300-1930 cfm (min-max). 10 speeds.
  • Energy Use: 25-500 watts (min-max)
  • Motor: 1/2 hp, 120/230 volt, 50/60 Hz, 1 phase, ECM
  • Filter Rating: Optional MERV 13 or MERV 6 filtration modules
  • Controls: Low-voltage digital wall mounted controller. 10 speeds. Optional wireless remote control available.
  • Grilles/Duct: Ducting and inlet or outlet grilles NOT included
