The AirScape Sierra applies advanced energy-efficiency and noise-reduction strategies to cool off your home with clean, fresh outside air. You can reduce your cooling costs up to 50-90%, substantially reducing your home energy footprint while improving indoor air quality, bedroom sleeping conditions and overall enjoyment of your home.
AirScape Sierra 3200 Spec Sheet
What's in the box
This unit comes in three boxes actually, and includes:
HVI-916 (CA Title 24) Airflow and Efficiency for 3200
Fan Speed Setting |
Airflow (CFM) |
Energy Use (Watts) |
Efficiency (CFM per Watt) |
---|---|---|---|
1 | 723 | 18 | 40.2 |
2 | 1388 | 42 | 33.0 |
3 | 1853 | 75 | 24.7 |
4 | 2212 | 116 | 19.1 |
5 | 2532 | 162 | 15.6 |
6 | 2834 | 215 | 13.2 |
7 | 3075 | 272 | 11.3 |
8 | 3123 | 287 | 10.9 |
9 | 3178 | 304 | 10.5 |
10 | 3253 | 321 | 10.1 |
Features for 3200
- Q-CFM™ Max Airflow**: 4424 CFM
- HVI-916 Max Airflow (CA Title 24): 3253 CFM
- For Square Footage: up to 2000 sq. ft. (under ideal conditions)
- Fan: 20" industrial grade
- Motor: 321W ultra-high efficiency, electronically commutated (ECM)
- Sound Level: 36 - 60 dBA (min - max)
- Attic Seal: Airtight with industrial grade dampers
- Insulation: Automatic insulated R-13 dampers
- Required Attic Venting: 4.3 sq. ft. min net free area (6 recommended)
- Recommended Attic Height/Clearance: 48" (contact us for help with tight attic spaces)
- Controls: Low-voltage hardwired switch with timer, optional wireless remote
- Grille: High-flow, white aluminum cube-core
- Installation: Drops in between 16" or 24" O/C joists
- Electrical: 10 ft. factory-installed power cord, 120 VAC, 60hz
- Warranty: 3 Years
Dimensions and Weight for 3200
- Grille Outer Dimensions: 16" x 24"
- Rough Opening: 14.5" x 22.5"
- Unit Size: 29.25" x 19.25" x 16.25" (Damper Unit)
- Shipping Weight: 90 lbs (3 boxes total)
AirScape Sierra 3400 Spec Sheet
What's in the box
This unit comes in three boxes actually, and includes:
HVI-916 (CA Title 24) Airflow and Efficiency for 3400
Fan Speed Setting |
Airflow (CFM) |
Energy Use (Watts) |
Efficiency (CFM per Watt) |
---|---|---|---|
1 | 723 | 17 | 42.5 |
2 | 1352 | 33 | 41.0 |
3 | 1775 | 55 | 32.3 |
4 | 2082 | 80 | 26.0 |
5 | 2415 | 110 | 22.0 |
6 | 2671 | 142 | 18.8 |
7 | 2896 | 179 | 16.2 |
8 | 3105 | 217 | 14.3 |
9 | 3282 | 259 | 12.7 |
10 | 3440 | 298 | 11.5 |
Features for 3400
- Q-CFM™ Max Airflow**: 4644 CFM
- HVI-916 Max Airflow (CA Title 24): 3440 CFM
- For Square Footage: up to 2500 sq. ft. (under ideal conditions)
- Fan: 24" industrial grade
- Motor: 298W ultra-high efficiency, electronically commutated (ECM)
- Sound Level: 36 - 52 dBA (min - max)
- Attic Seal: Airtight with industrial grade dampers
- Insulation: Automatic insulated R-13 dampers
- Required Attic Venting: 4.6 sq.ft. min net free area (7 recommended)
- Recommended Attic Height/Clearance: 48" (contact us for help with tight attic spaces)
- Controls: Low-voltage hardwired switch with timer, optional wireless remote
- Grille: High-flow, white aluminum cube-core
- Installation: Compatible on 16" or 24" O/C joists
- Electrical: 10 ft. factory-installed power cord, 120 VAC, 60hz
- Warranty: 3 Years
Dimensions and Weight for 3400
- Grille Outer Dimensions: 24.5" × 28.5"
- Rough Opening: 22.5" × 26. 5"
- Unit Size: 33.25" x 26.25 x 19.25" (Fully Assembled Damper Unit)
- Shipping Weight: 110 lbs (3 boxes total)
AirScape Sierra 4300 Spec Sheet
What's in the box
This unit comes in three boxes actually, and includes:
HVI-916 (CA Title 24) Airflow and Efficiency for 4300
Fan Speed Setting |
Airflow (CFM) |
Energy Use (Watts) |
Efficiency (CFM per Watt) |
---|---|---|---|
1 | 765 | 18 | 42.5 |
2 | 1568 | 43 | 36.5 |
3 | 2105 | 75 | 28.1 |
4 | 2544 | 117 | 21.7 |
5 | 2918 | 167 | 17.5 |
6 | 3267 | 224 | 14.6 |
7 | 3567 | 288 | 12.4 |
8 | 3847 | 360 | 10.7 |
9 | 4099 | 438 | 9.4 |
10 | 4324 | 515 | 8.4 |
Features for 4300
- Q-CFM™ Max Airflow**: 5967 CFM
- HVI-916 Max Airflow (CA Title 24): 4324 CFM
- For Square Footage: up to 3500 sq. ft. (under ideal conditions)
- Fan: 24" industrial grade
- Motor: 515W ultra-high efficiency, electronically commutated (ECM)
- Sound Level: 36 - 56 dBA (min - max)
- Attic Seal: Airtight with industrial grade dampers
- Insulation: Automatic insulated R-13 Dampers
- Required Attic Venting: 5.8 sq. ft. min net free area (9 recommended)
- Recommended Attic Height/Clearance: 48" (contact us for help with tight attic spaces)
- Controls: Low-voltage hardwired switch with timer, optional wireless remote
- Grille: High-flow, white aluminum cube-core
- Installation: Compatible on 16" or 24" O/C joists
- Electrical: 10 ft. factory-installed power cord, 120 VAC, 60hz
- Warranty: 3 Years
Dimensions and Weight for 4300
- Grille Outer Dimensions: 24.5" × 28.5"
- Rough Opening: 22.5" × 26. 5"
- Unit Size: 33.25" x 26.25" x 19.25" (Fully Assembled Damper Unit)
- Shipping Weight: 115 lbs (3 boxes total)
AirScape Sierra 5300 Spec Sheet
What's in the box
This unit comes in three boxes actually, and includes:
HVI-916 (CA Title 24) Airflow and Efficiency for 5300
Fan Speed Setting |
Airflow (CFM) |
Energy Use (Watts) |
Efficiency (CFM per Watt) |
---|---|---|---|
1 | 690 | 36.5 | 18.9 |
2 | 1302 | 49.1 | 26.5 |
3 | 1868 | 74.1 | 25.2 |
4 | 2438 | 117.9 | 20.7 |
5 | 3013 | 185.1 | 16.3 |
6 | 3500 | 279 | 12.5 |
7 | 4060 | 515 | 7.9 |
8 | 4676 | 594 | 7.9 |
9 | 5239 | 811 | 6.5 |
10 | 5527 | 932 | 5.9 |
Features for 5300
- Q-CFM™ Max Airflow**: 7196 CFM
- HVI-916 Max Airflow (CA Title 24): 5527 CFM
- For Square Footage: up to 4500 sq. ft. (under ideal conditions)
- Fan: 24" industrial grade
- Motor: 825W ultra-high efficiency, electronically commutated (ECM)
- Sound Level: 36 - 68 dBA (min - max)
- Attic Seal: Airtight with industrial grade dampers
- Insulation: Automatic insulated R-13 Dampers
- Required Attic Venting: 7.1 sq. ft. min net free area (10 recommended)
- Recommended Attic Height/Clearance: 48" (contact us for help with tight attic spaces)
- Controls: Low-voltage hardwired switch with timer, optional wireless remote
- Grille: High-flow, white aluminum cube-core
- Installation: Compatible on 16" or 24" O/C joists
- Electrical: 10 ft. factory-installed power cord, 120 VAC, 60hz
- Warranty: 3 Years
Dimensions and Weight for 5300
- Grille Outer Dimensions: 24.5" × 28.5"
- Rough Opening: 22.5" × 26. 5"
- Unit Size: 33.25" x 26.25" x 19.25" (Fully Assembled Damper Unit)
- Shipping Weight: 120 lbs (3 boxes total)
It lives in your attic
Big and powerful, yet ultra-quiet and efficient. The AirScape Sierra delivers stealthy whole house ventilation, pushing hot air out through existing attic vents, and drawing cool evening air in through open windows.

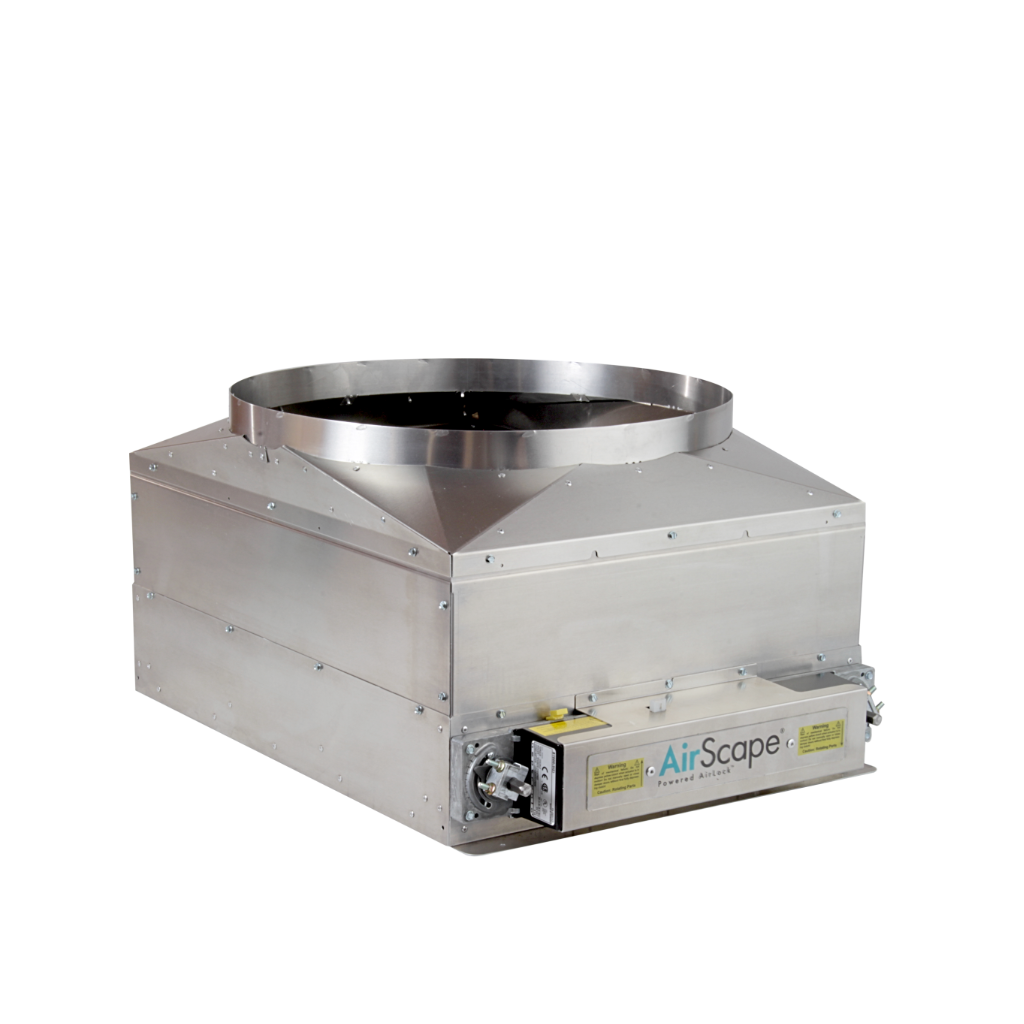

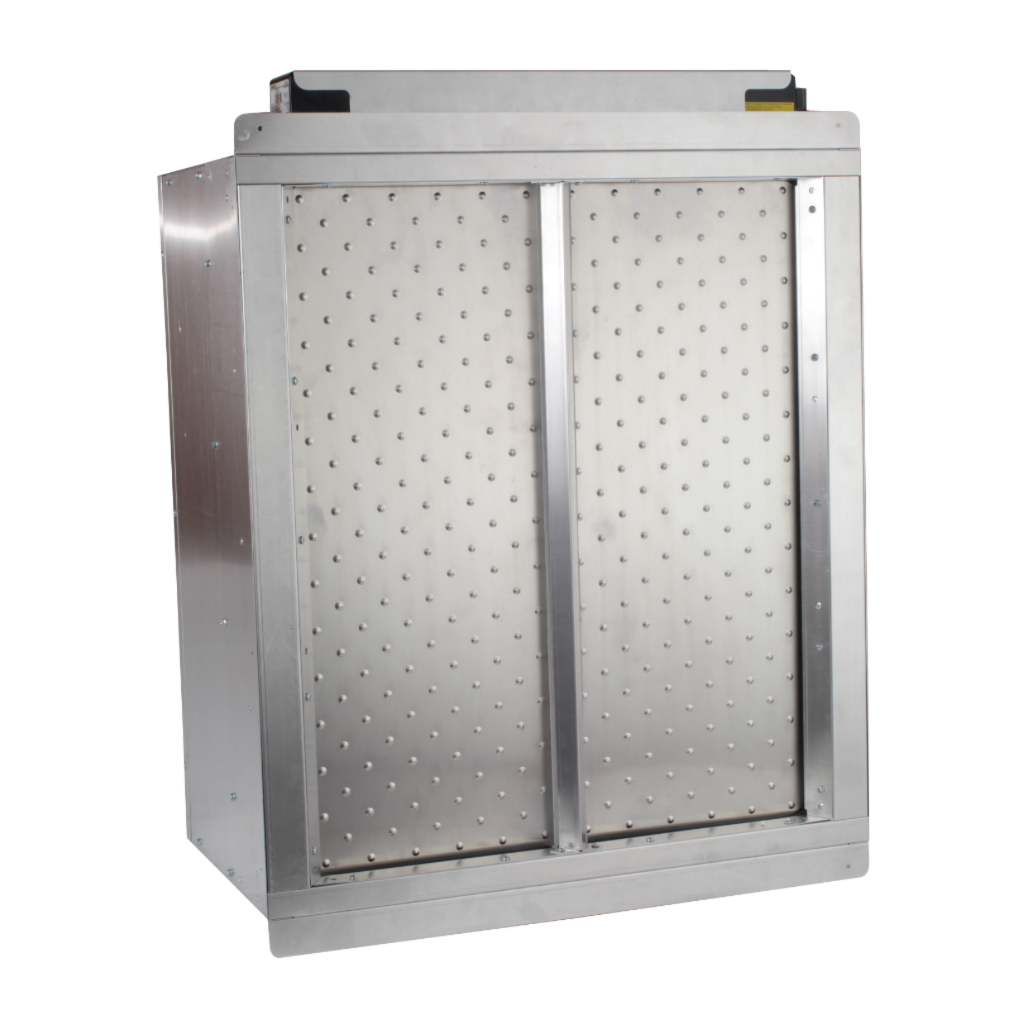

Powered Airlock™ damper doors
An AirScape exclusive, and the main feature upgrade from the Ventura. Sturdy motorized damper doors tightly seal off your attic to prevent air leaks, dust and pests from entering your living space. High insulation level in the doors prevents heat loss and condensation in cold weather. We even added golf ball-inspired dimples to help smooth airflow over the door surface and improve efficiency. We recommend this superior system for all homes, but it becomes critical in regions with cold winters.
Sizing your AirScape Sierra
We offer whole house fans in a wide range of airflow capacities to meet the needs of every size of home. In general, a bigger house needs a bigger fan.
Home Size
1500 - 2500 sf
Airflow Required
2000 - 3500 CFM
Recommended Models
LiftLock 2500
3200
3400
Home Size
2500 - 3500 sf
Airflow Required
3500 - 5000 CFM
Recommended Model
5300
Home Size
3500 - 4500 sf
Airflow Required
4500 - 5500 CFM
Recommended Model
5300
Multiple units might be required
House under 1500 sq ft? See our compact AirScape LiftLock 1700, Ventura 1700 or AirScape LiftLock drop-in units.
Bigger is better
We always recommend the largest unit your space and budget will allow. Here’s why: a larger fan moves more air at a lower RPM, which is quieter AND more energy efficient at the same time. Learn more
Using your AirScape
Our 10 speed settings provide the control you need for effective cooling that is easy to live with. Adjust the speed below to get a feel for the experience.
Low speed | 1-2
Use case: All night long to keep things fresh and maximize thermal mass cooling of the building and contents.
Perceived sound level: Practically silent, even directly under the vent.
Amazing power
Ultimate efficiency
A high-tech ECM motor provides the ultimate in energy efficiency, durability and smooth operation.
Optimal air movement
There is more to fan than that meets the eye. With decades of experience in HVAC engineering, our precision fan blades have been carefully calibrated for optimal airflow efficiency.
The performance is in the details
Our new patented aerodynamic fan housing design provides about 23% more airflow using the same power.
Draws lots of air,
not lots of attention

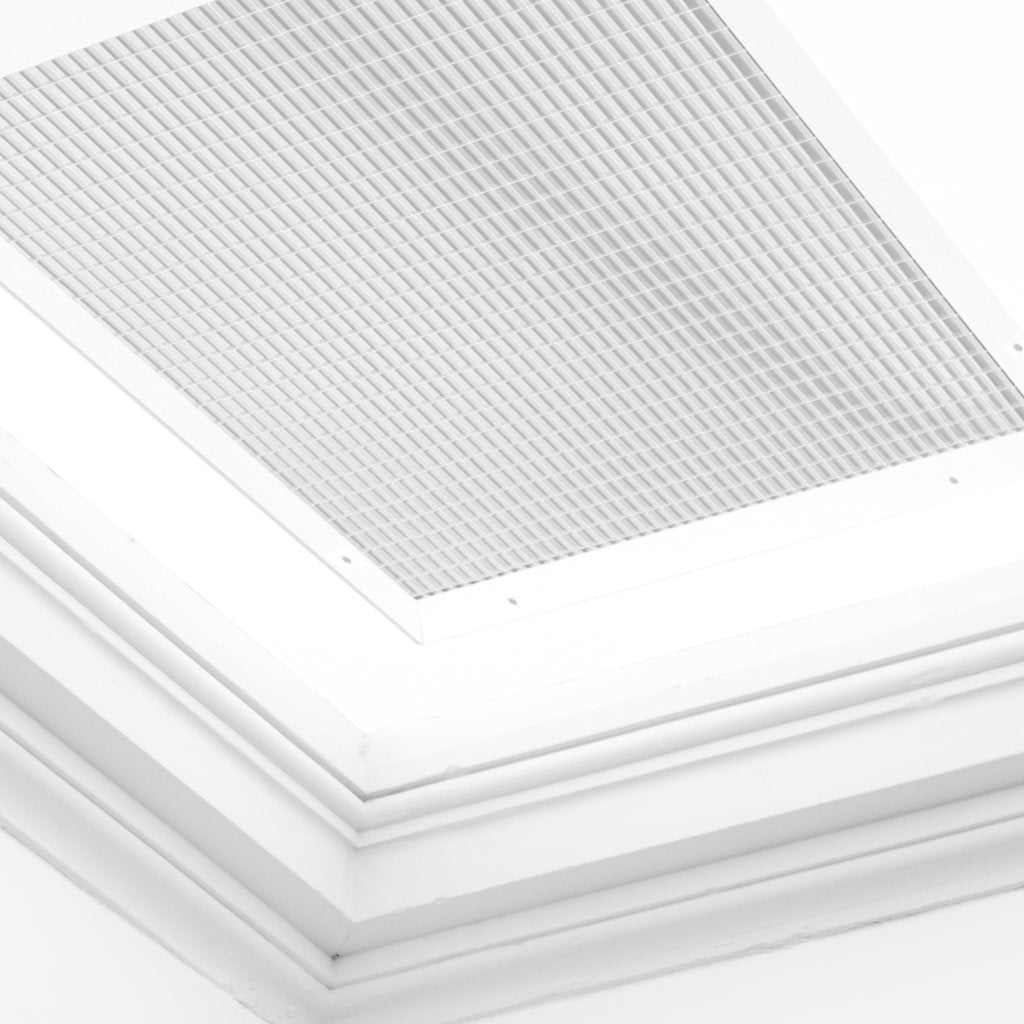

All you’ll notice is fresh, subtle air movement, and the quietest of whooshing, if any at all. A premium cube-core grill provides maximum air flow with an understated architectural look.
Precision electronics
Unlike our competitors, AirScape uses advanced custom-designed electronics to achieve superior performance and efficiency.

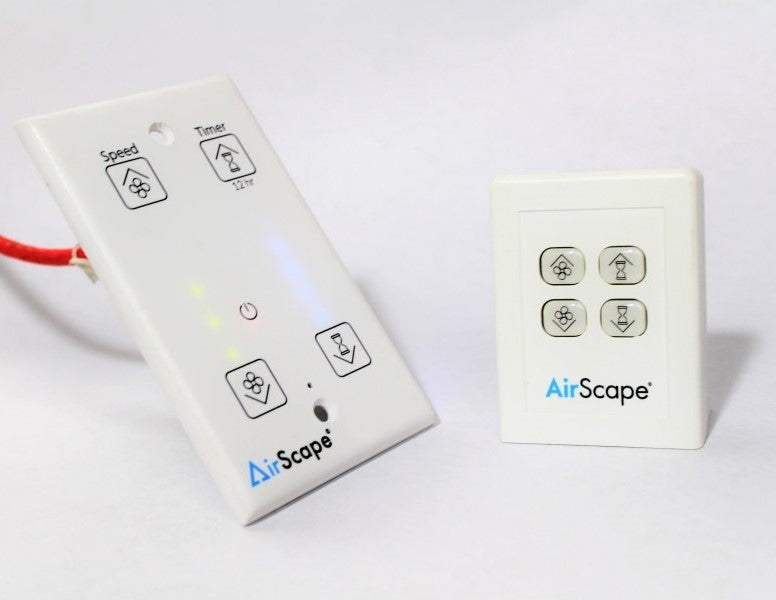

Master the evening breeze
An elegant touch-activated wall plate provides easy selection of fan speed and timer duration. The optional remote allows you to control your fan from anywhere in the home.
Smooth Installation
AirScape systems can typically be installed by a skilled handyman in 4-6 hours. And while we always recommend one of our experienced AirScape Installers, no special skills are required. Watch the 30-second overview above to get an idea.
Reduce your energy footprint and dramatically improve the livability of your home with fresh natural breezes that are a joy to sleep in. Instead of living in stale, recycled refrigerated air, an AirScape fan will change the air in your home between 4 and 10 times an hour, with near-silent operation. In a survey, over 80% of users said their AirScape fan “absolutely” adds to the enjoyment of their home. 85% said they were either “thrilled” or “very satisfied” with their AirScape purchase.
